UX1200BGT Wireless Guitar/Bass System

Product image 1

1 / 25

UX1200BGT Wireless Guitar/Bass System

User Manual
UX1200 Series Frequency List

Package Includes:
Specifications:

Package Includes:

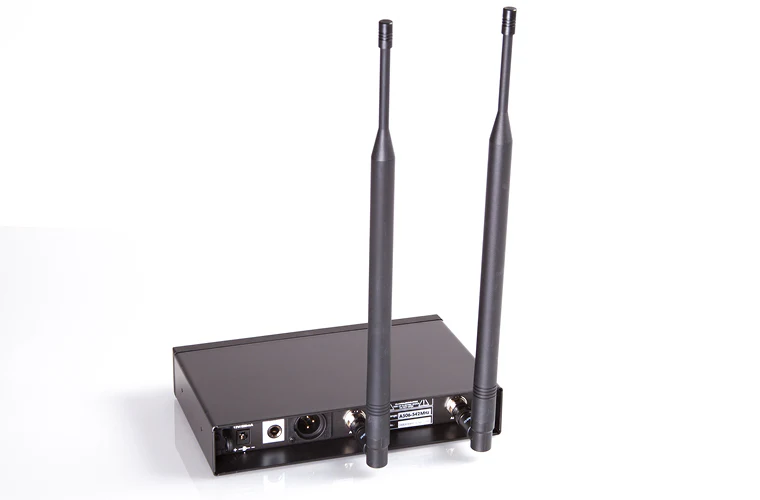

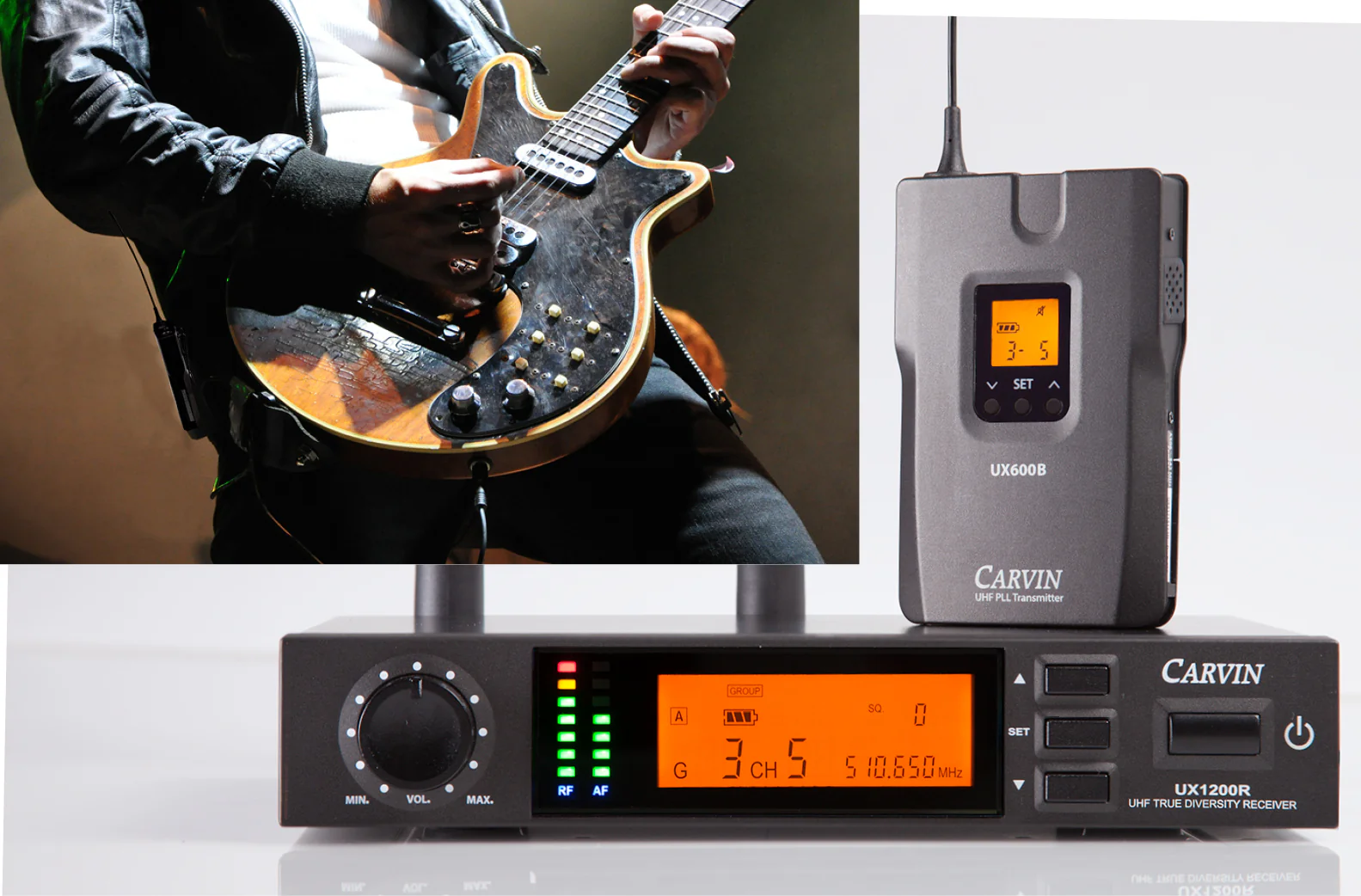

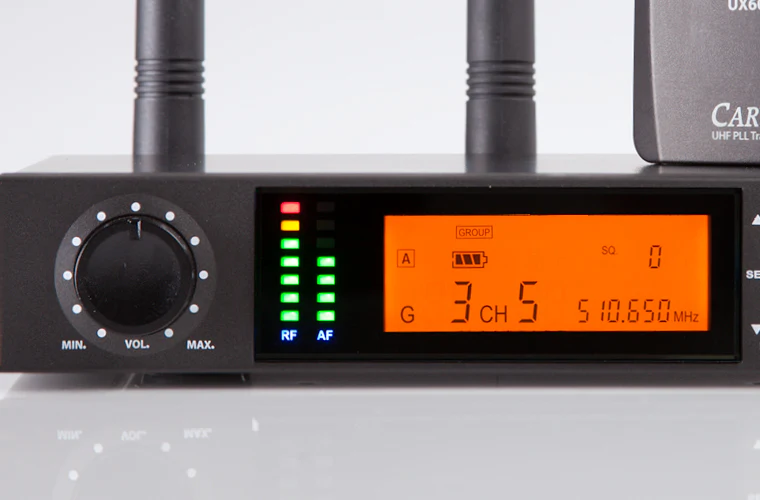

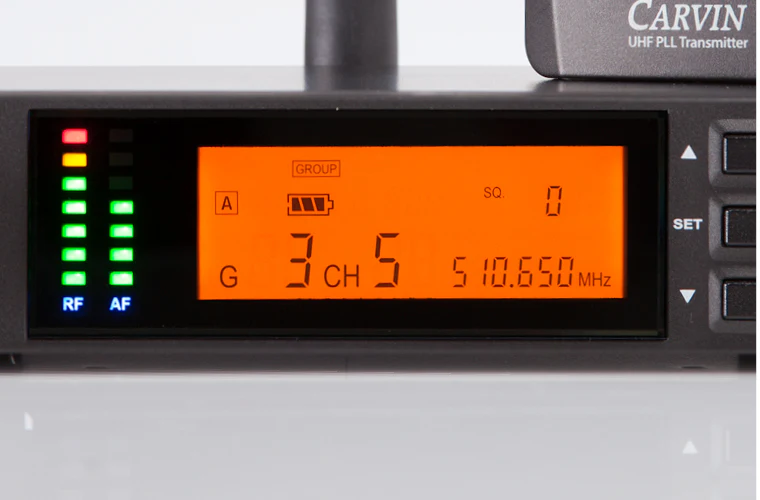

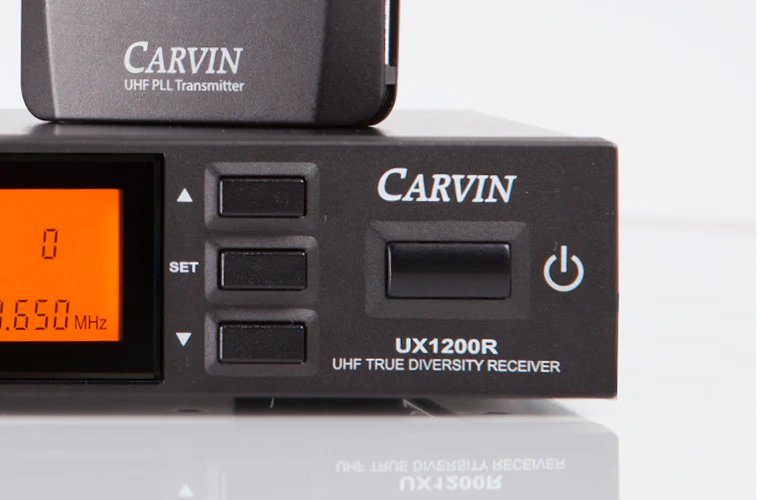

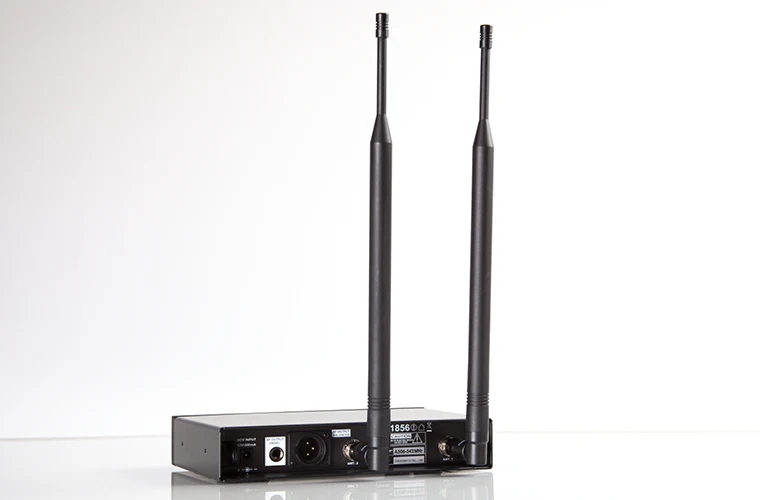

1 UX1200R Wireless Receiver (506 MHz - 542 MHz)

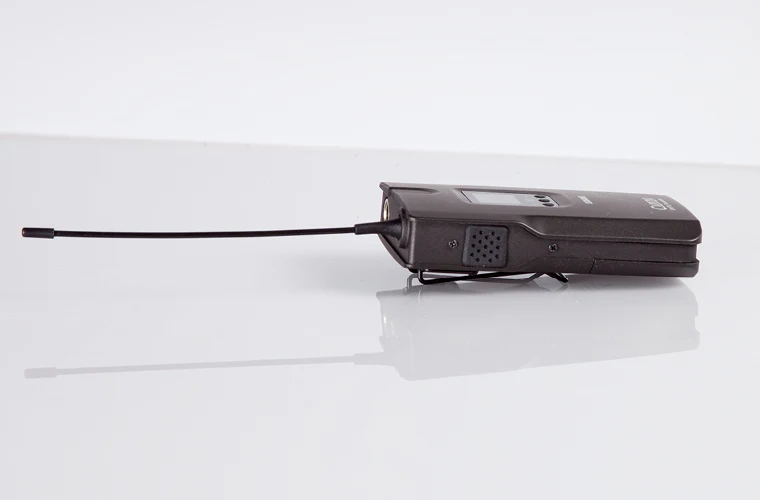

1 UX600B Belt Pack Transmitter

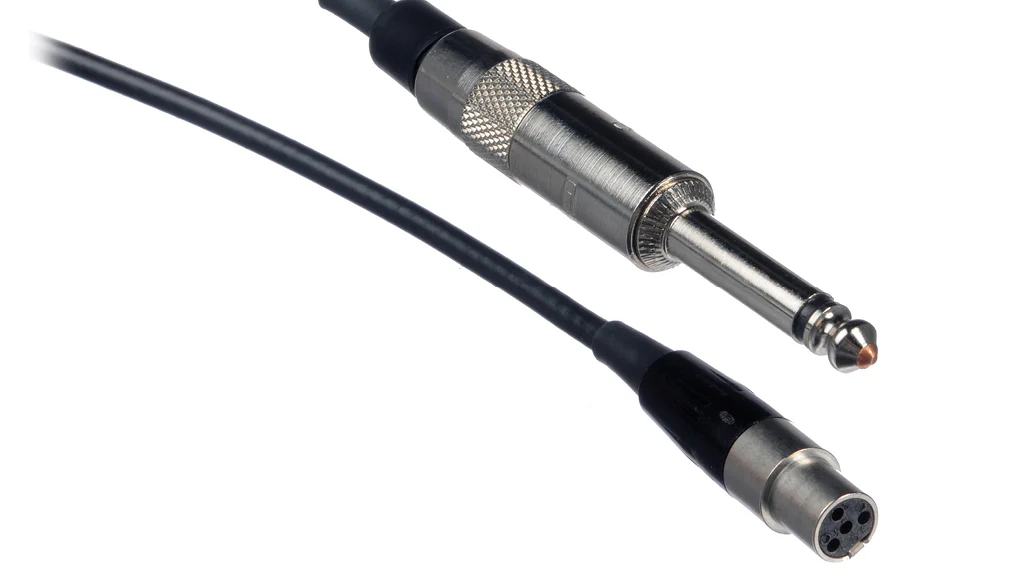

1 UXGT 1/4-Inch Instrument Cable

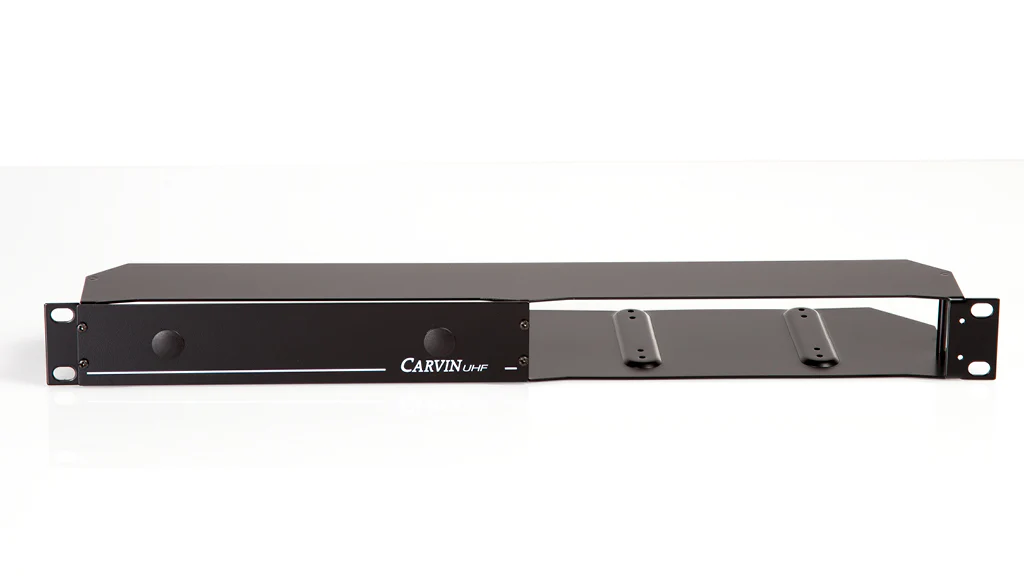

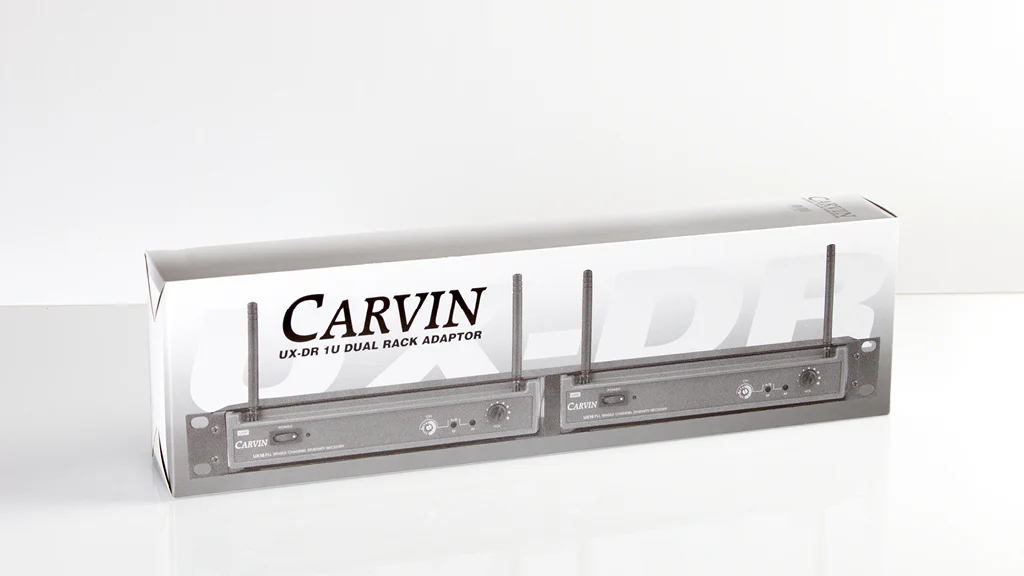

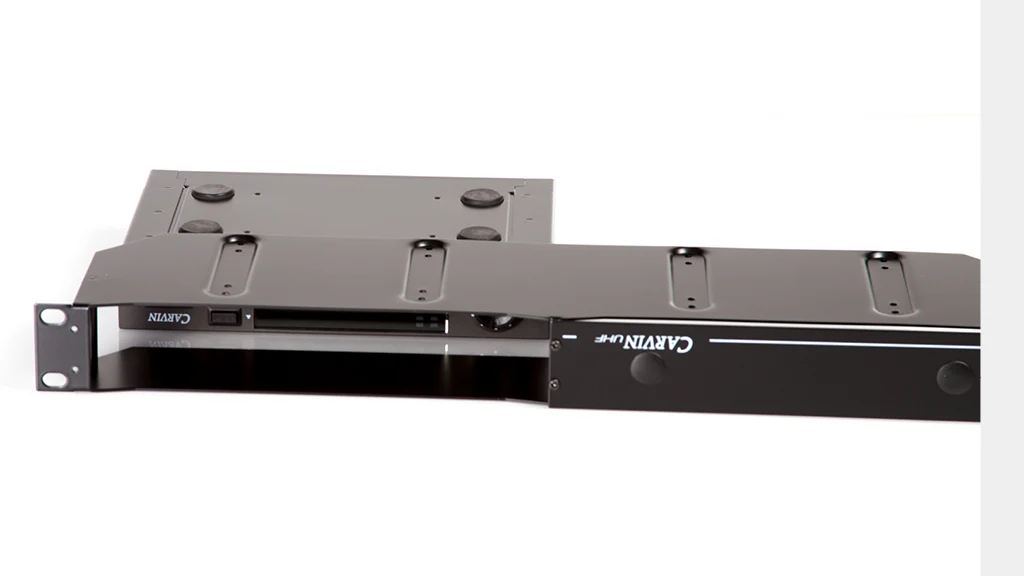

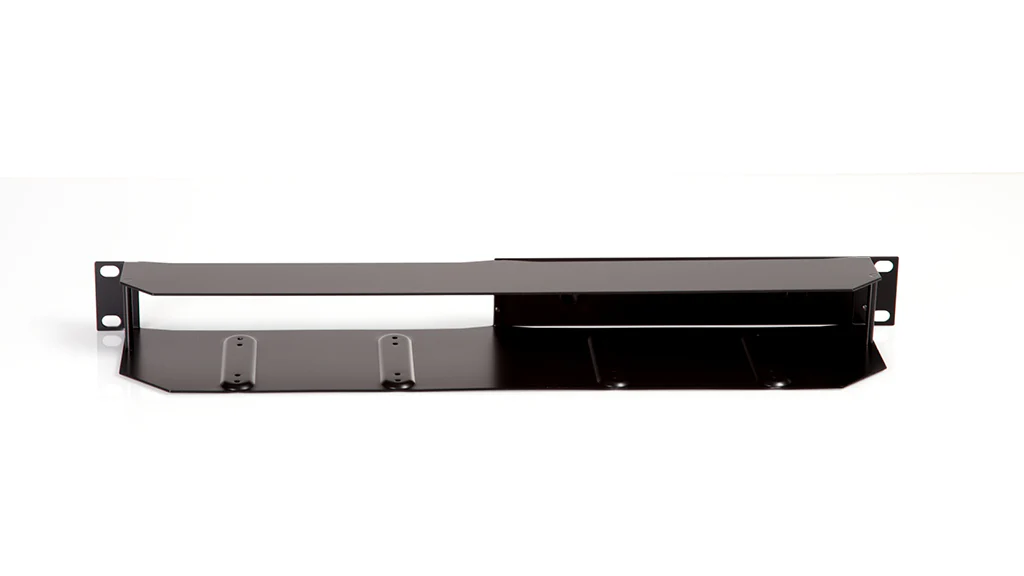

Experience the freedom to move about the stage without the constraint of a wired instrument cable. The UX1200BGT Wireless Guitar System is the ideal solution for live music. One UX1200BGT can serve as 3 different workhorses in your inventory. Choose different accessories such as the PERFORMER 1T over ear headset microphone or the UX-LP1 lavalier microphone. Add a UX-DR dual rack mount kit for a complete solution.
Simultaneous Channels in Operation : 14
System Type : Analog
Group / Channel Selections : 6 Groups of 23 Channels
Channel selection : Auto and Manual ( In .025MHz increment)

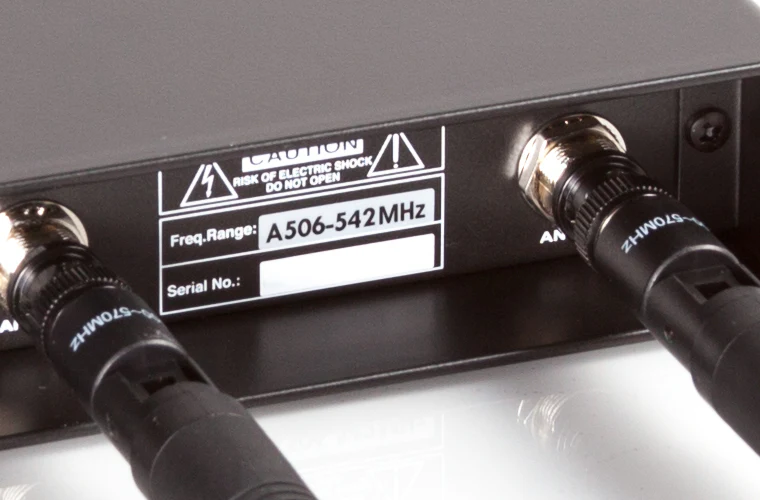

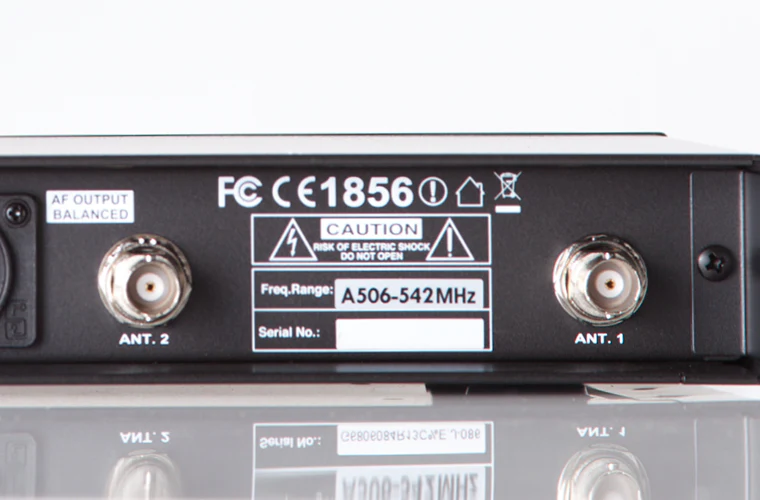

RF Frequency Band : 506MHz - 542MHz
RF Bandwidth : 36MHz
Reception Format : True Diversity, PLL Synthesized

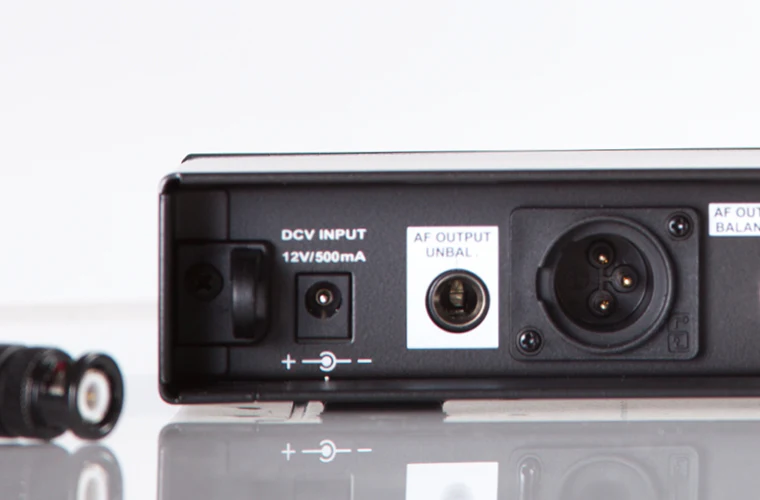

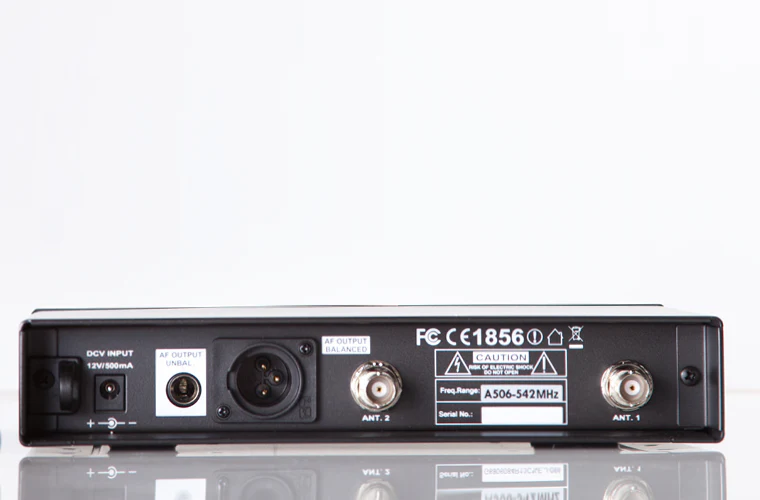

Audio Output : XLR and 1/4-Inch outputs

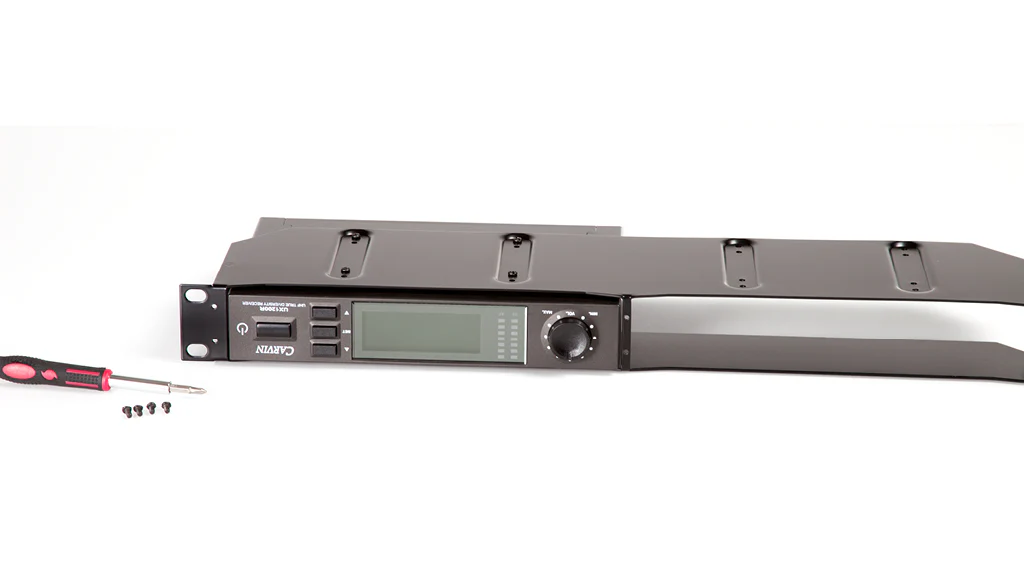

Receiver Type : Table Top or Rackmount
Warranty: 90 Days

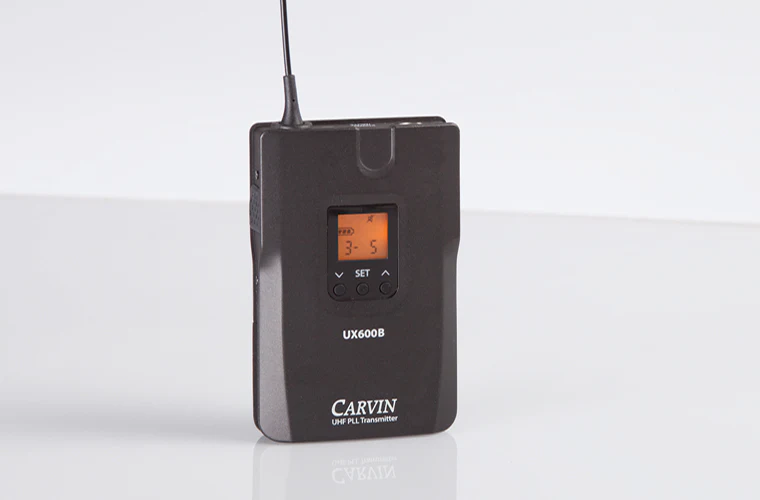

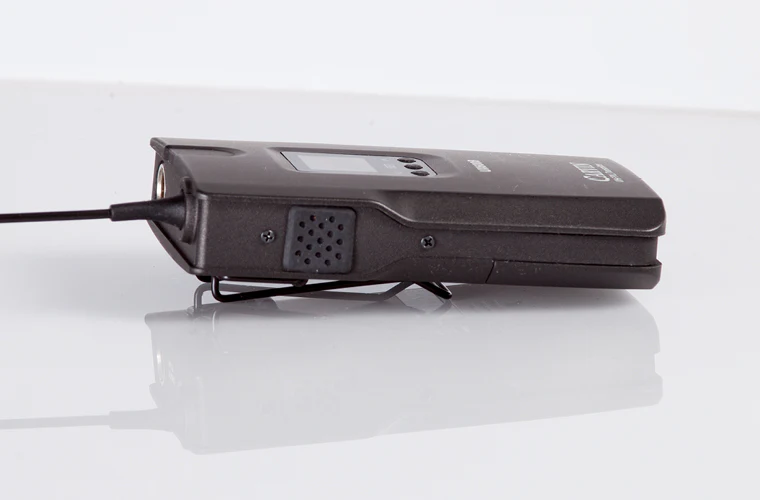

UX600B Belt Pack Transmitter Specifications :

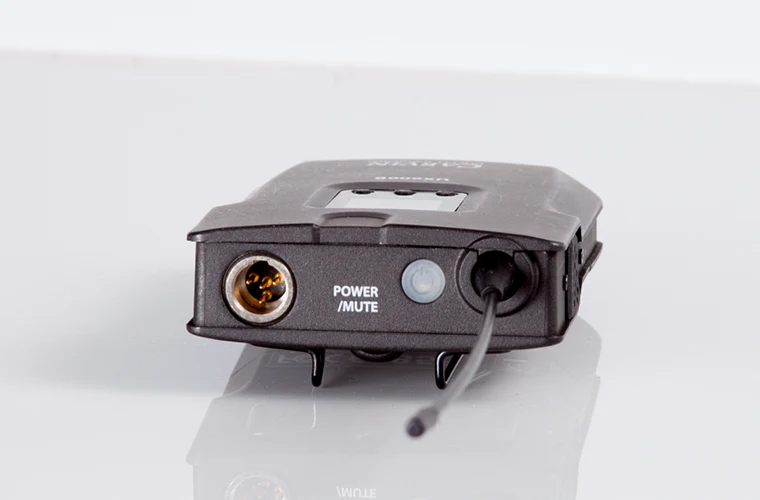

Input Connector: TA4F 4-pin XLR
Frequency Response: 40Hz to 18kHz
RF Output Level : 10mW or 50mW
Battery : 2x AA, Not Included
Lighted Mute Indicator: Yes
Backlit Display: Yes
Group and Frequency Selection : Yes, Manual and Auto Scan
Sensitivity Adjust : Yes , -18dB /+12dB (3dB steps)
Attenuation Control : Yes- Helps to manage extreme SPL input
Lock Out : Yes
Microphone Accessories : UX-HM3(Black), UX-HM3T(Tan), UX-LP1
Warranty: 90 Days

$349.00
